Valterra fittings and valves, and Ronco Plastics tanks received.
---------------------------------------------------
I've spent the last couple of months trying to figure out the best way to squeeze ~30 gallons of gray water capacity into the frame. I've come up with a combination of tank sizes and shapes that should work with existing fixture locations and vents.

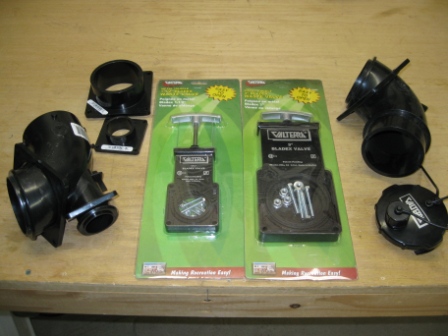

The fittings and valves below will tie the gray and black tanks to a common drain. The drain location will be moved one outrigger aft from factory location.

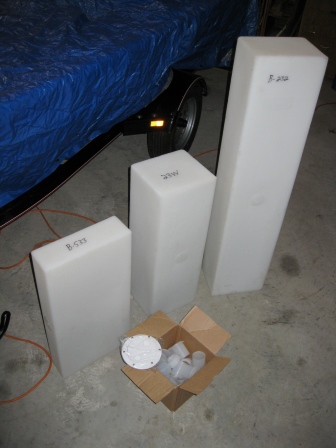

I chose HDPE marine tanks from Ronco Plastics.
P/N 23W - 9 gallon - 30.25" x 10" x 9"
P/N B533 - 6 gallon - 27" x 13.25" x 4.25"
P/N B232 - 18 gallon - 48.5" x 10.75" x 8"

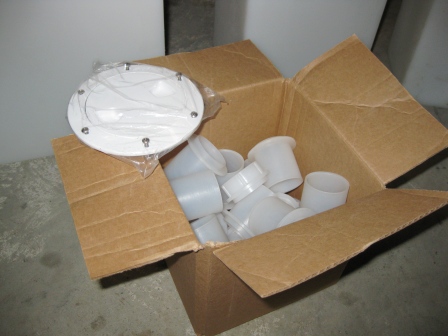

The tanks were produced without fittings as I will not know the exact locations of vents and drains until installation. Ronco provided a box full of fittings, as well as a deck plate that will serve as a clean-out for the black tank.
That's all for today.
