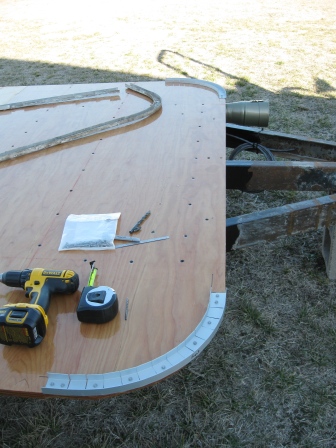

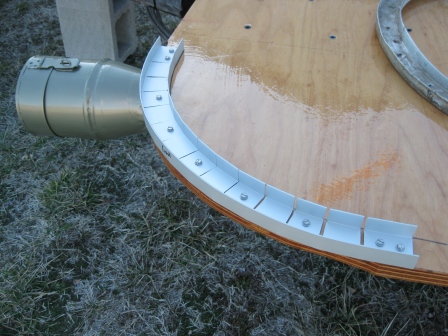

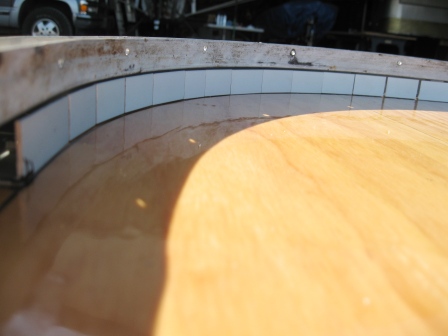

Installed front "C" channel corner sections.
---------------------------------------------------

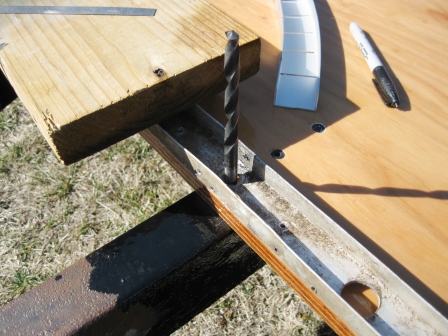

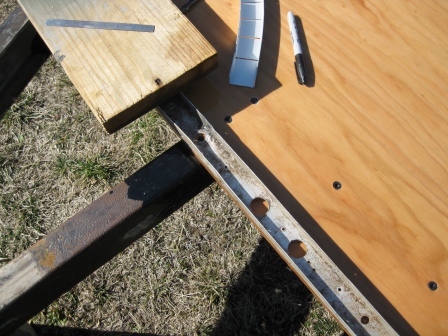

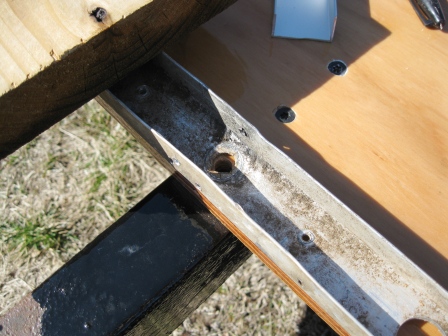

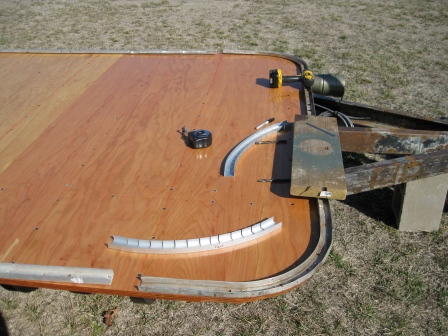

The original extruded channel is used to index the new corner sections.

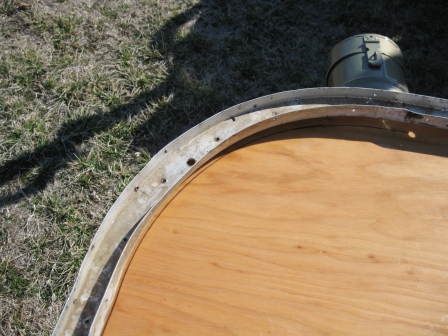

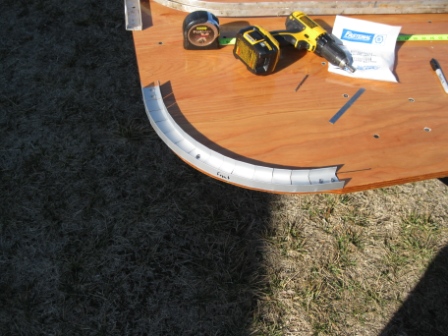

The inside radius of the corner is traced with a Sharpie. The tracing is for the initial location of the new corner section.

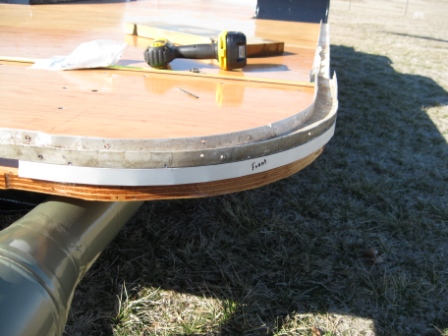

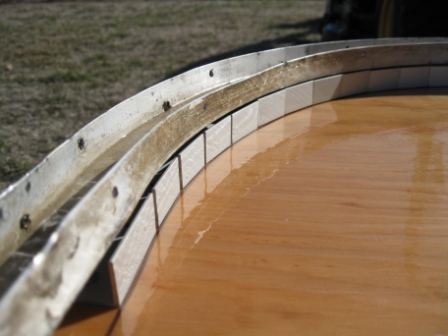

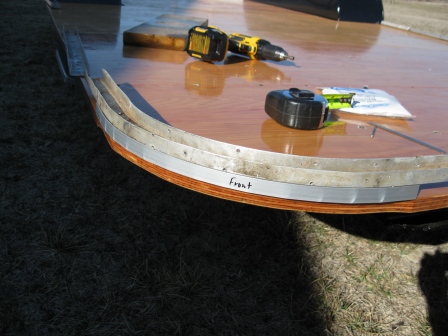

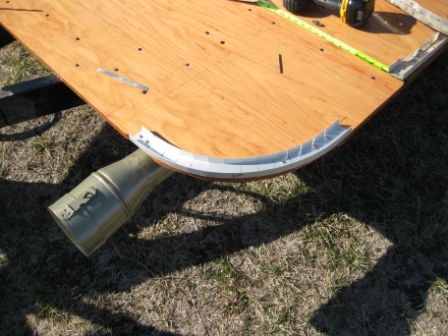

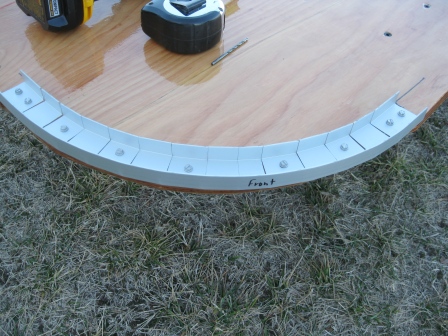

The new corner section are only fastened at the ends until the proper radius achieved. Once the radius is matched, the remaining fasteners are installed.

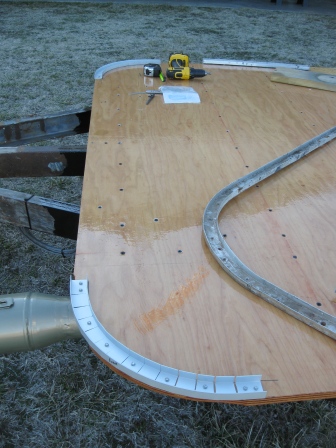

The process is repeated for the forward curbside corner.

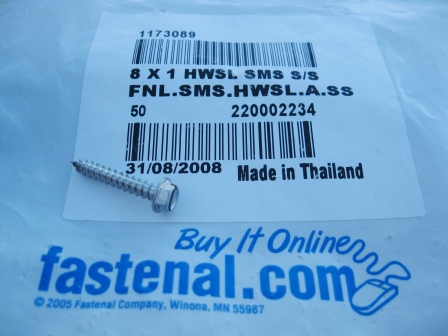

The fasteners that are used to secure the "C" channel to the subfloor are #8 18-8 stainless steel screws, 1" in length.
That's all for today.
